MultiGigabit changes more than the speed of the network

At multigigabit speeds, the Ethernet frame remains unchanged. The engineering workflow changes around it: physical access, connectors, active-tap visibility, logging capacity, time synchronization and protected-link proof.

Predefined Test Cases
Connect the multigigabit ECU
Establish a direct point-to-point conversion between Automotive ECUs using the 2.5/5/10GBASE-T1 multigigabit standard and a SFP+ module compatible with multigigabit ethernet interfaces
Protocol Expertise
Observe the live link
Place an active tap in one point-to-point link to forward live traffic between the endpoints while creating a captured copy for logging and analysis, ensuring HW timestamping without causing interference on the in-vehicle-network (IVN)
Automated Execution
Retain start-up traffic
Start capturing data the moment your system powers up, thanks to built-in buffers and optimized startup logic.
OEM Adaptations
Manage capture
output
Avoid data bursts and logger overload. Our modules balance output traffic, ensuring consistent and loss-free logging — even without an external data logger.
Component and System Testing
Trust the nanoseconds-resolution timestamping
Synchronize data across multiple bus systems with hardware timestamping down to nanoseconds. Perfect for root cause analysis and seamless traceability.
Standardized Reporting
Scaling automotive ethernet without adding complexity
SFP/SFP+ modules lineup covers different speed rates ranging from 100Mbps/1Gbps to 10Gbps ensuring reliable, modular connectivity solution that delivers consistent performance

Technica multigigabit workflow to help you at every stage

The three products that support physical access, compact Automotive Ethernet integration and trusted observation or capture data.

Automotive Ethernet
Access
Convert between 2.5/5/10GBASE-T1 and a compatible standard ethernet interface
MediaConverter MultiGigabit
Cybersecurity
Integrate
Add a compact multigigabit automotive ethernet interface to suitable SFP+ host hardware.
SFP+ Module MultiGigabit
Validation
Observe
Capture one point-to-point link, apply hardware timestamps and export traffic with logging metadata.
Capture Module MultiGigabit

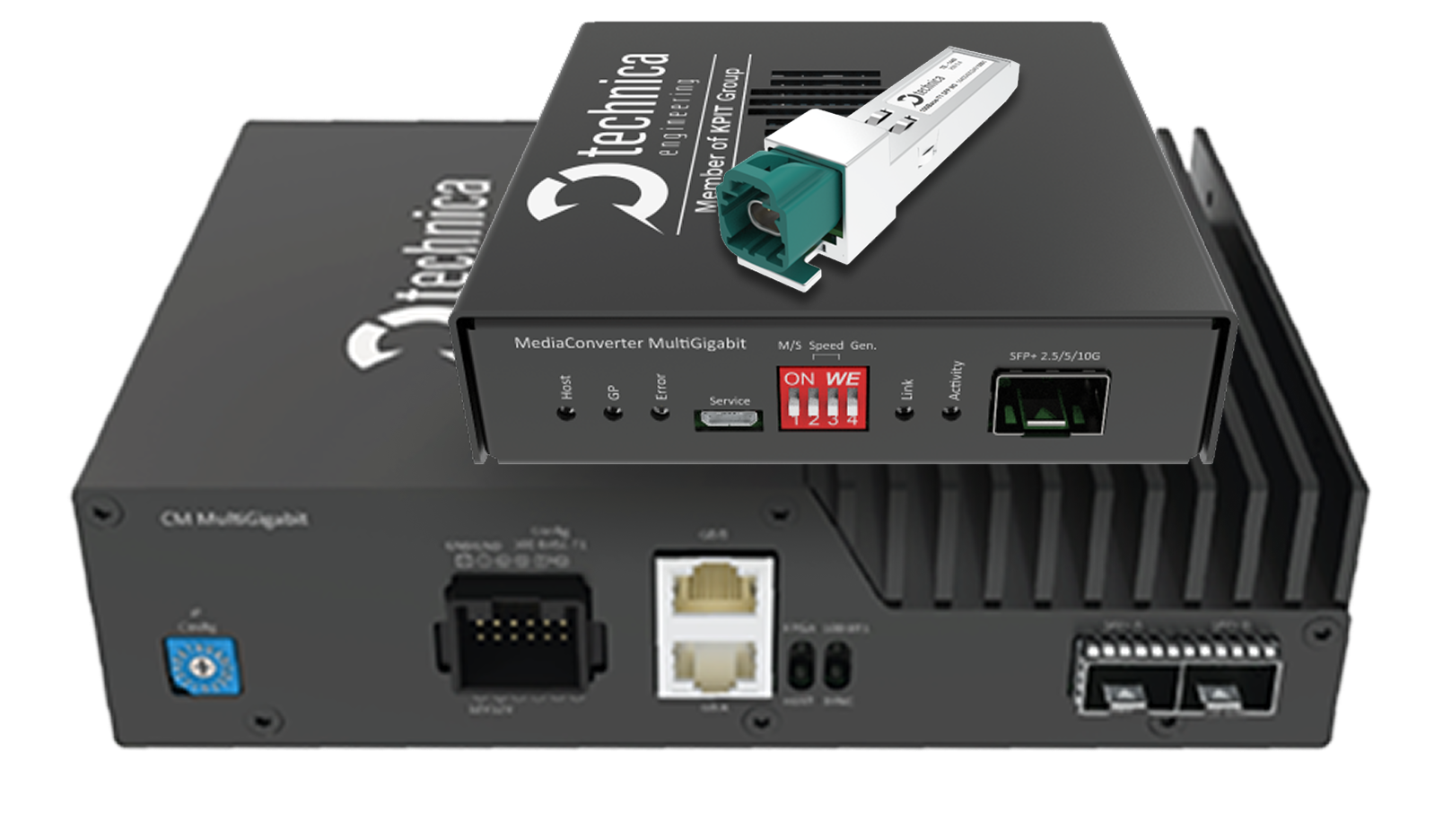

Three products for the MultiGigabit validation workflow

validate-image
Physical-Layer Access

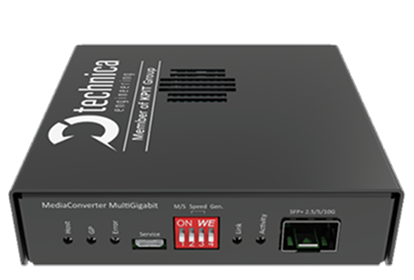

MediaConverter multigigabit

Establish a direct point-to-point conversion between Automotive ECUs using the 2.5/5/10GBASE-T1 multigigabit standard and a SFP+ module compatible with multigigabit ethernet interfaces

  • Speed and master/slave role configuration

  • Link status, SQI, CRC and PHY diagnostics

  • TC10 wake/sleep and IEEE test modes

  • DIP, MQS GPIO, serial console and PC GUI

  • TE-1415 Broadcom and TE-1416 Infineon variants

  • TE-1416: packet generator, License available- MACsec at line speed

Know more  →
validate-image
Compact PHY Integration

SFP+ Module multigigabit

The TE-1445 converts between 2.5/5/10GBASE-T1 Automotive Ethernet and a 10 Gbit/s host electrical interface compliant with SFF-8431 in suitable SFP+ hardware.

  • 2.5 / 5 / 10GBASE-T1 support

  • Master/slave and speed configuration

  • Four DIP switches for start-up defaults

  • MACsec, MKA available at line speed

  • Output by TC10

  • Link status, SQI, CRC, and PHY diagnostics

  • DIP-switch override and PHY access through a compatible host

Know more  →
validate-image
Active Visibility

Capture Module multigigabit

An active tap for one point-to-point 2.5/5/10GBASE-T1 connection. It forwards live traffic between both endpoints, creates a captured copy, applies a hardware timestamp and sends logging output to a logger or PC.

  • Hardware timestamping with nanosecond resolution

  • TECMP and ASAM CMP encapsulation

  • gPTP/802.1AS-2011 AVnu profile or PTPv2 subset

  • Start-up buffer, packetisation and output traffic shaping

  • Basic and advanced filtering

  • Traffic injection and cascading

Know more  →

Observe the difference frame by frame in the upcoming free webinar

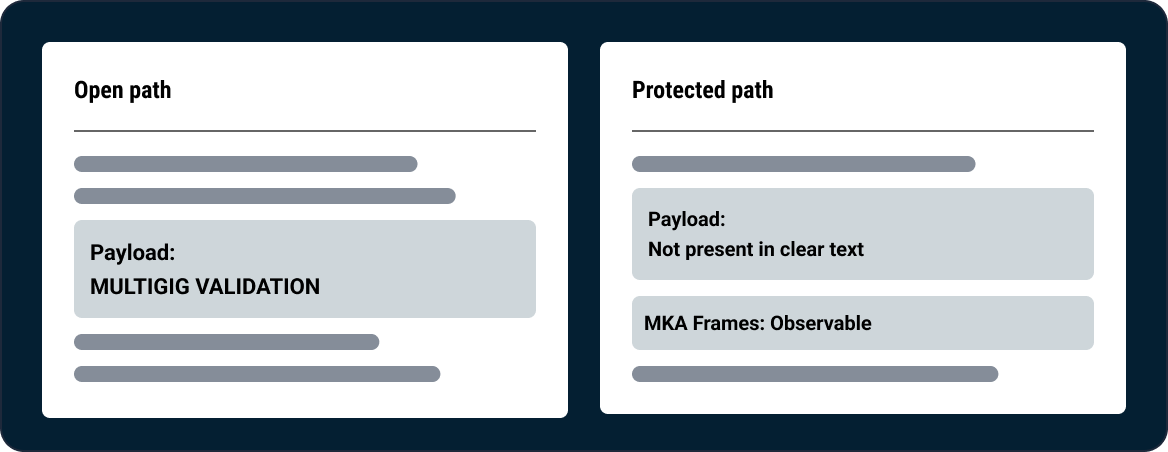

The demonstration in the webinar sends one user-defined payload through an regular path and a protected path. The payload is readable on the open path. On the protected path, MKA negotiation frames are visible and the equivalent traffic is MACsec-protected

The unprotected path passes through the MediaConverter multigigabit

The protected path uses the supporting Enhanced Ethernet Switch and two SFP+ modules

The Capture Module multigigabit logs the protected link

The two traffic states are compared in separate Wireshark views

Technical webinar beyond 1 gigabit. How to validate, observe and secure multigigabit automotive ethernet
Understand what changes at 2.5/5/10GBASE-T1, how an ECU connects to standard test infrastructure, how a live link is captured and how the documented demo distinguishes open traffic from MACsec-protected traffic.
60 minutes
Technical session
Live demo
Q&A
Register for the free webinar now
Free validation playbook. The automotive multigigabit validation playbook
A practical guide for Validation, HIL, Network, Security and Integration Engineers to media converting, capturing and validating 2.5, 5 and 10GBASE-T1 links across bench, HIL, lab and controlled in-vehicle testing.
Technology essentials
Reference architectures
Decision guide
Requirements checklist
Download the playbook
