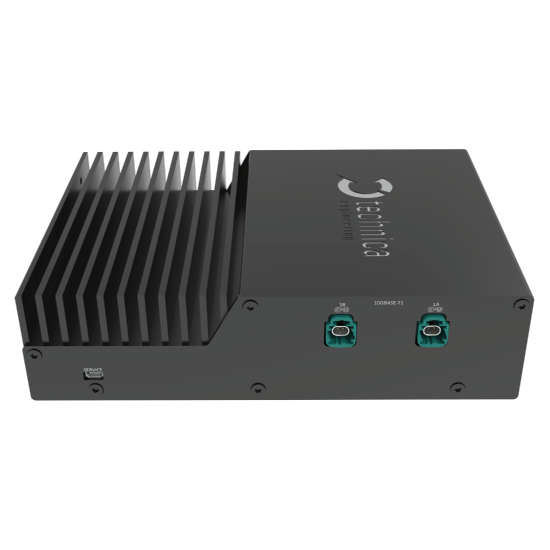

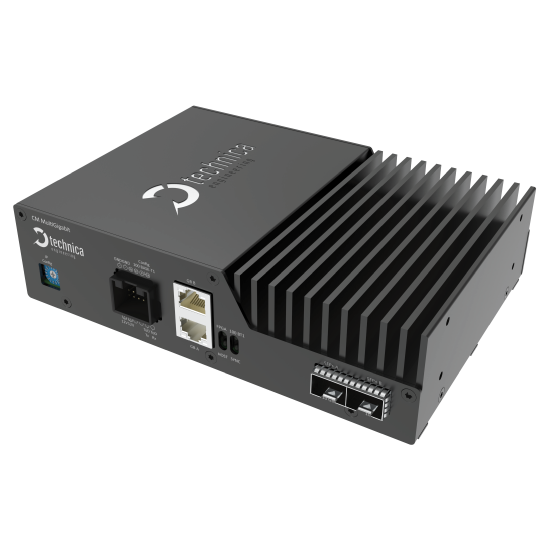

The Capture Module (CM) MultiGigabit from Technica Engineering is an active tap device designed to capture 2.5/5/10GBASE-T1 traffic of up to 1 point-to-point 2.5/5/10GBASE-T1 connection (2 ports in total). The received data is captured and HW timestamped without causing interference on the in-vehicle-network (IVN) and sent out to the data sink (e.g. data logger or PC).
Contact Us

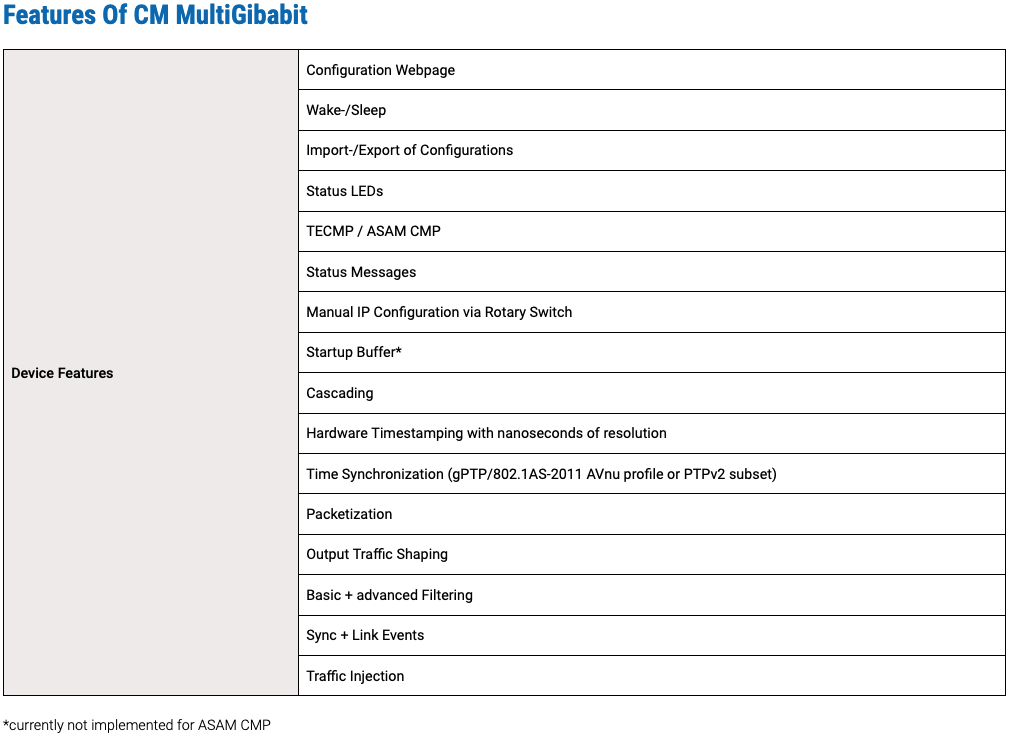

The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.
1Early Access Product
An Early Access Product (EAP) is a nearly finished product available to selected users before its official release. The product may remain in this status, because it includes a pre-market component (PHY/Switches) that is not fully certified, which restricts the entire product from achieving CE certification or equivalent regulatory approval. This means, EAP is still a prototype, but in a very advanced state. Small adaptations are still possible, but no critical changes are expected and general development is closed. The software includes almost all planned features. Documentation as e.g. User Manual is available and completed.
Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. In order to cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.
