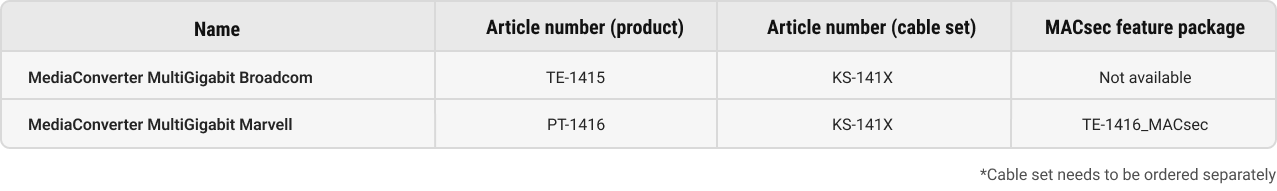

MediaConverters of Technica Engineering are compact and reliable devices for development and testing activities. They establish a direct point-to-point conversion between Automotive ECUs using the 2.5/5/10GBASE-T1 MultiGigabit standard and an SFP+ module compatible with MultiGigabit Ethernet interfaces. Additionally, MediaConverter TE-1416 supports the MACsec technology implemented in hardware, allowing MACsec to run at full speed, up to 10Gpbs.
Contact Us
MediaConverters can be statically configured for standalone operation but also controlled remotely for dynamic operation.

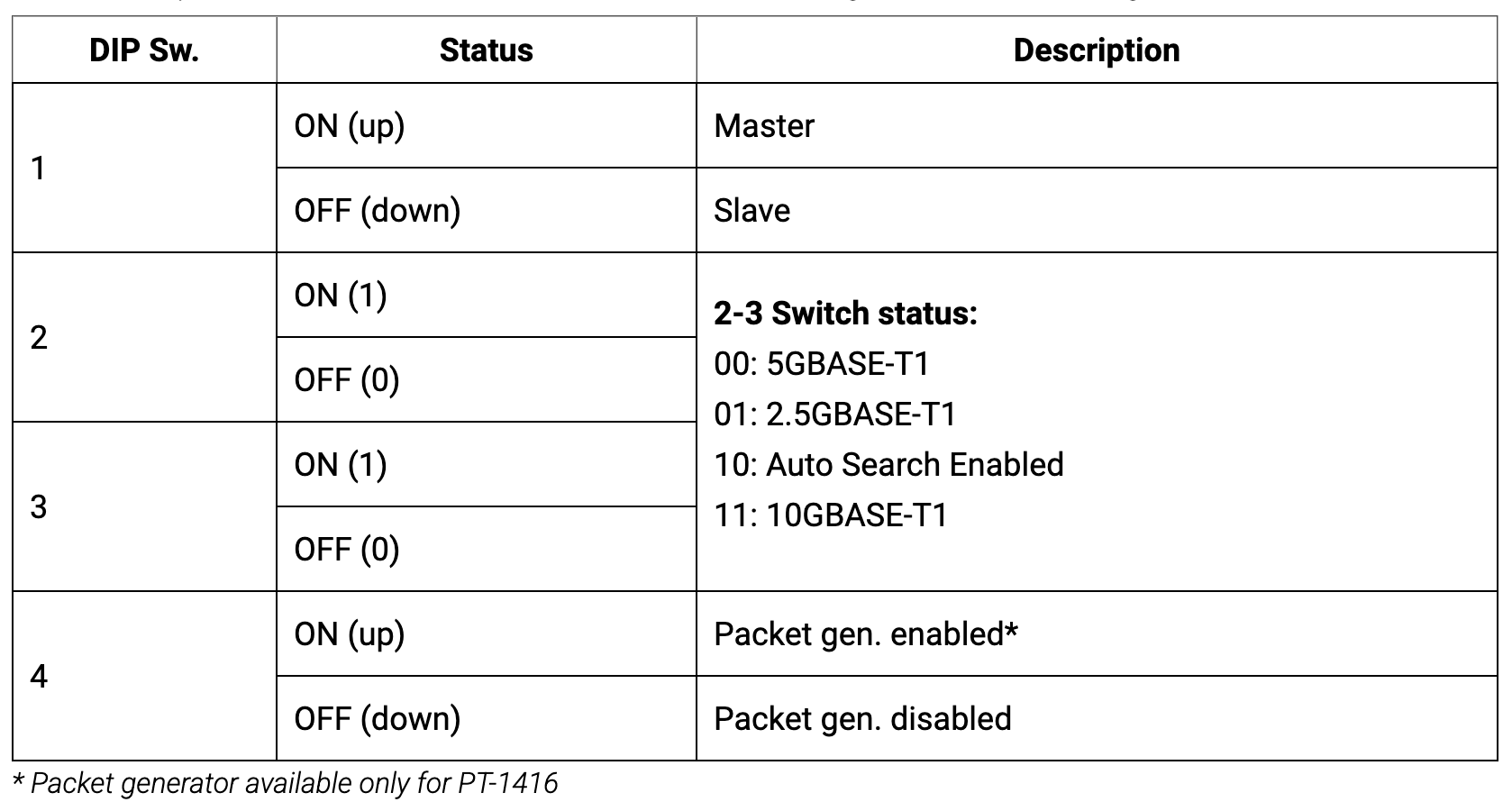

Standalone operation is defined via 4x DIP switches for basic configuration of the MultiGigabit MediaConverter.
Remote-controlled operation without computer is available through GPIOs in MQS connector.
Finally for advanced use cases, to control remotely the operation or additional debugging purposes, there is a serial interface (console), which is accessible through via USB. This interface enables the users to read TX/RX register counters, SQI values of the channels, CRC errors, and other information as well as dynamically change the MediaConverters configuration overriding DIP switches. It can also be used for Firmware updates of the device. For more user-friendly interface for configuration and management, can be used a WEB GUI PC application.

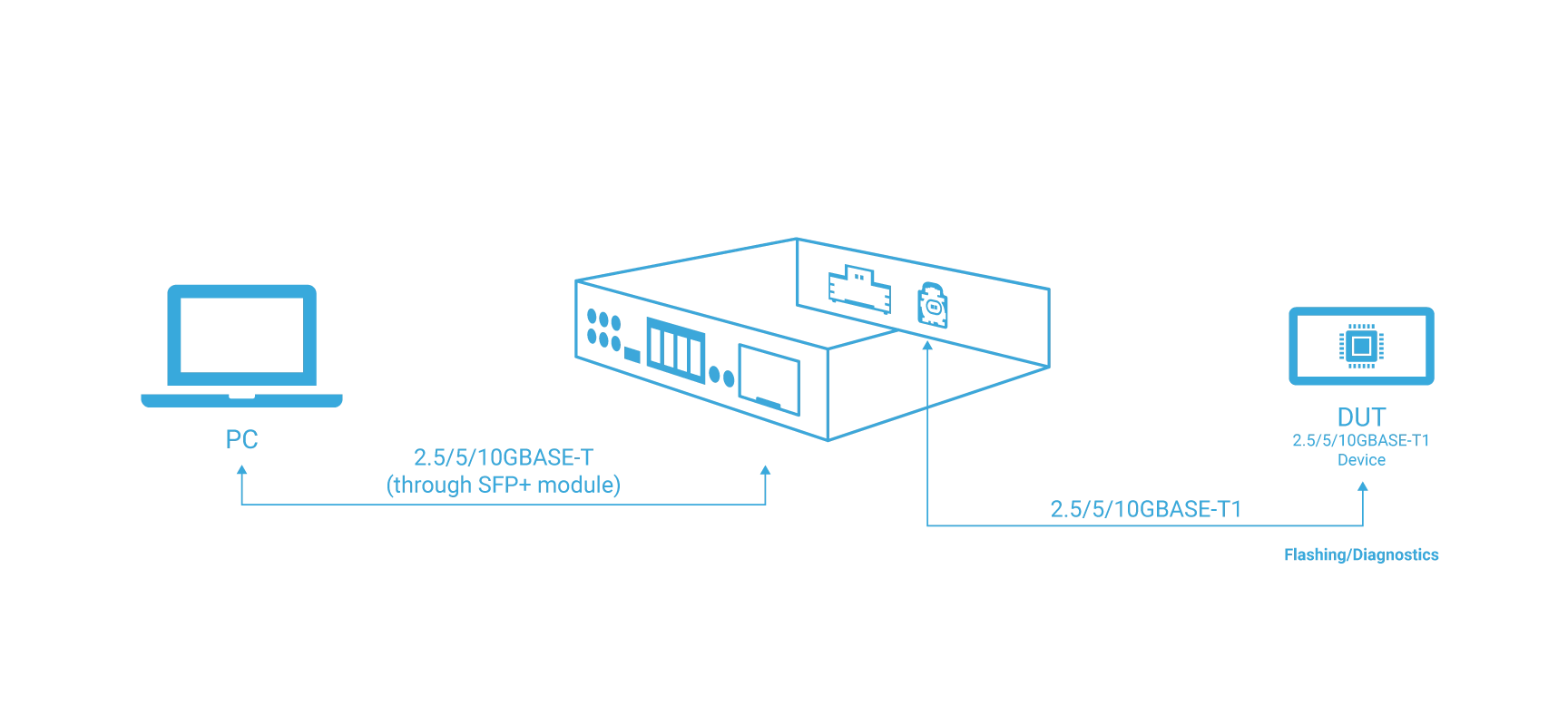

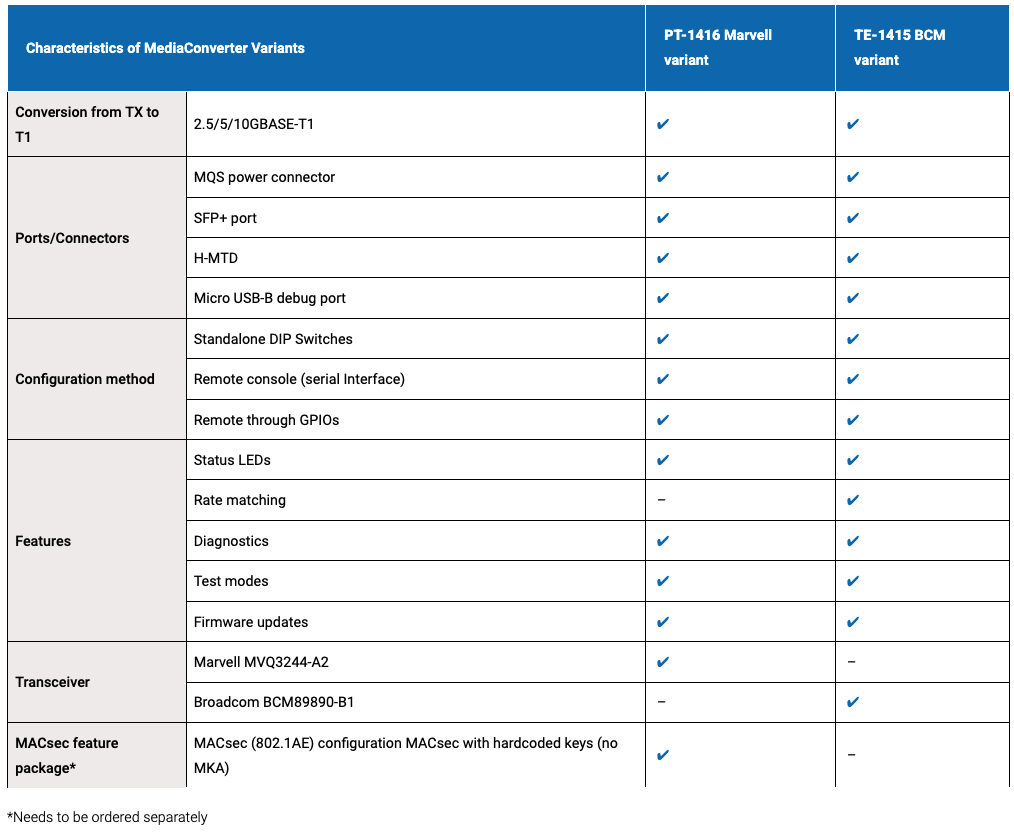

MediaConverters provide direct point-to-point conversion uses the 2.5G/5G/10GBASE-T1 IEEE 802.3ch compliant Automotive Ethernet PHY with MACsec/TC10 support. It supports bi-directional conversion across Ethernet standards.

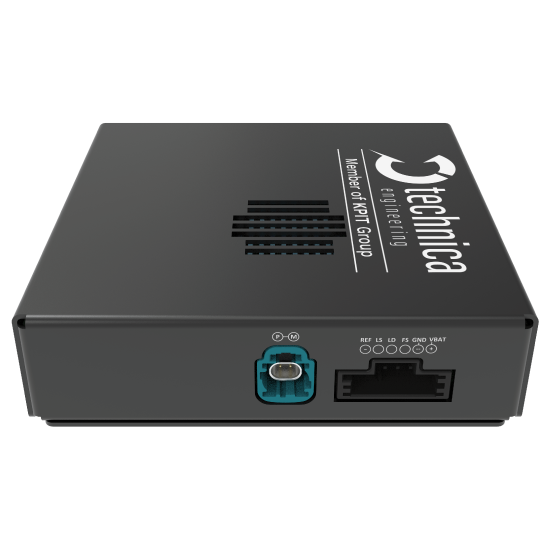

Technica Engineering’s MediaConverters can be used on the development desk and even in harsh vehicle environments. These devices are adapted for continuous operation in Testbenches, which also corresponds temperature range in which they can work and their robust casing.
