Introducing Our Solution:

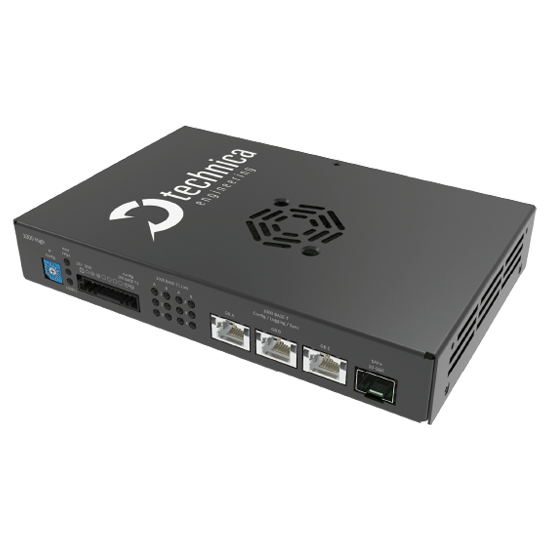

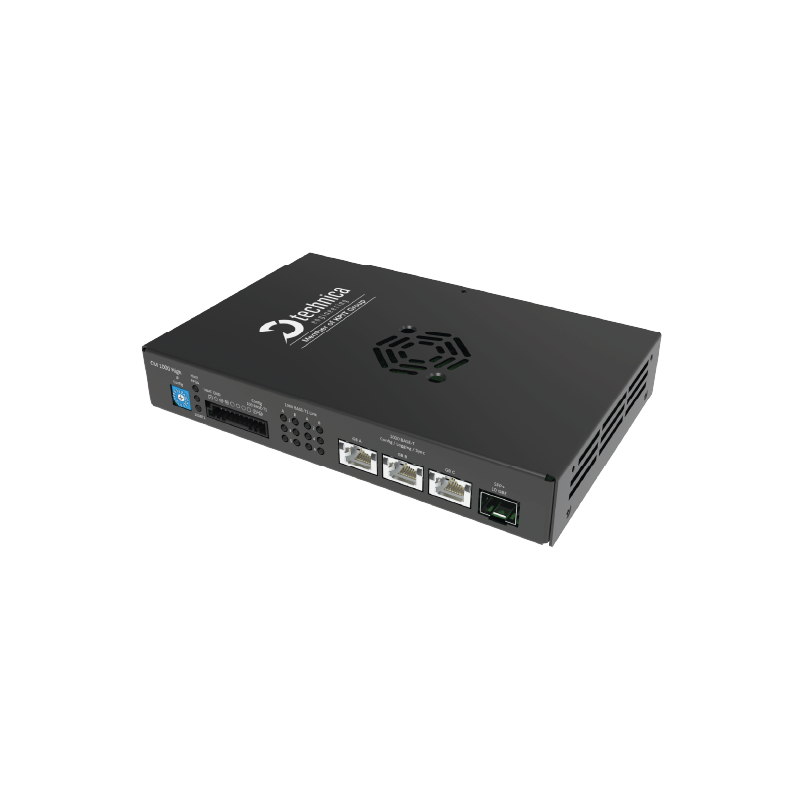

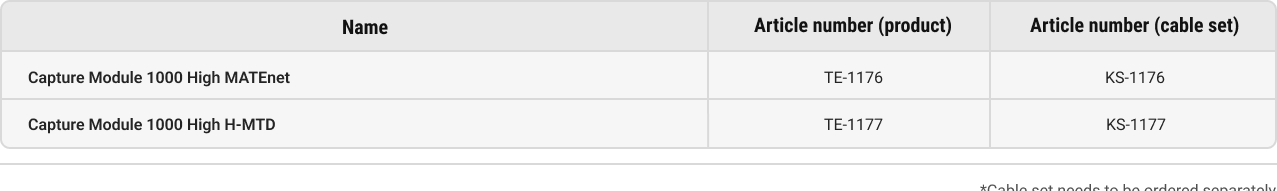

Capture Module 1000 High

The Capture Module (CM) 1000 High fromTechnica Engineering is an active tap device designed to capture 100/1000Base-T1 traffic of up to 6 point-to-point 100/1000BASE-T1 connections (12 ports in total). The received data is captured and HW time stamped without causing interference on the in- vehicle-network (IVN) and sent out to the data sink (e.g. datalogger or PC).

Detailed Product Information

Configuration

The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.

Application areas

Capture Modules are designed to be used in different environments such as in the car, on a development desk or in test benches. To cover the seareas as best as possible, the devices allow continuous operation and a wide temperature range.

Product video

Technical details

Operating temperature

-40°C to 75°C

Supply voltage

6.5 V to 30 V DC (typ. 12 V DC)

Power consumption

25 to 36 Watt

IP protection class

IP 20

Housing dimensions

196 mm (W), 130.4 mm (L), 32.5 mm (H)

Weight

0.8 kg (approx.)

Interfaces

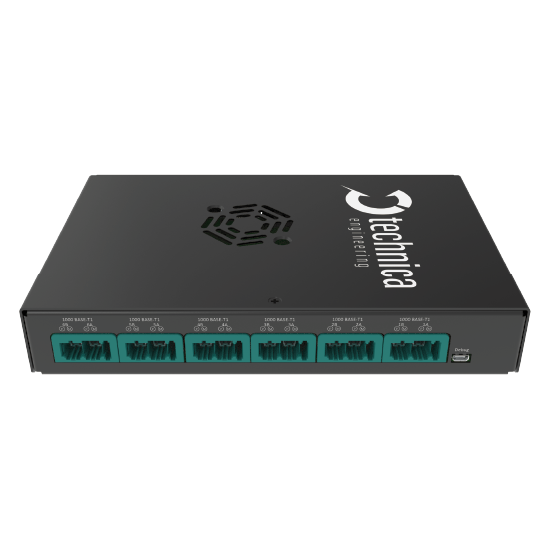

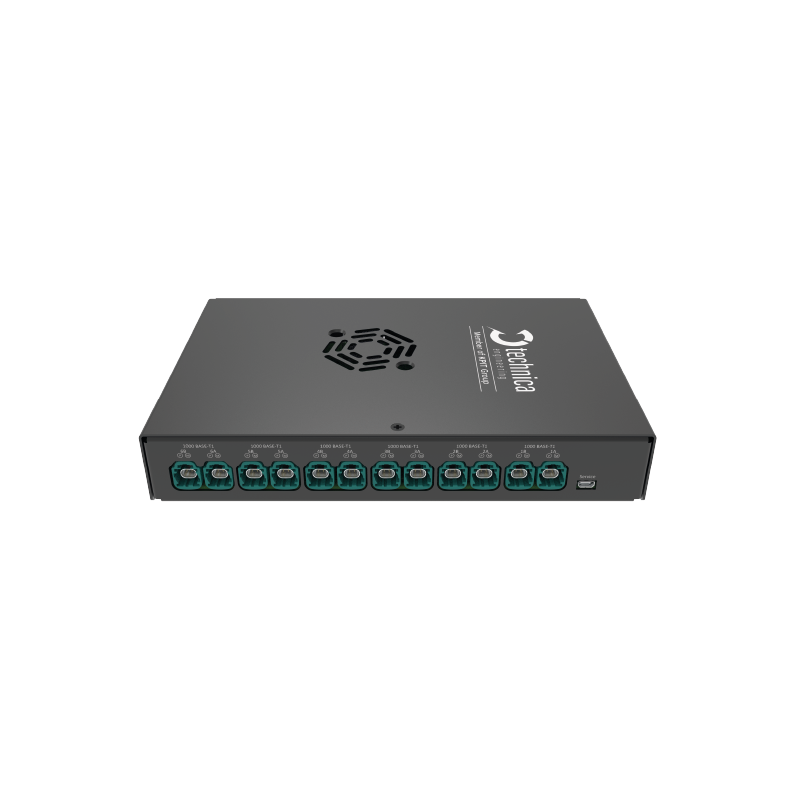

12x 100/1000BASE-T1 (MATEnet or H-MTD) 3x 1000BASE-T (RJ-45) for Config, Logging, Sync 1x 10Gbit Ethernet (SFP+) for Logging, Sync 1x 100BASE-T1 (MQS) for Config 2x Wake in/out (MQS)

Phy (vehicle-side)

MARVELL 88Q2112-A2

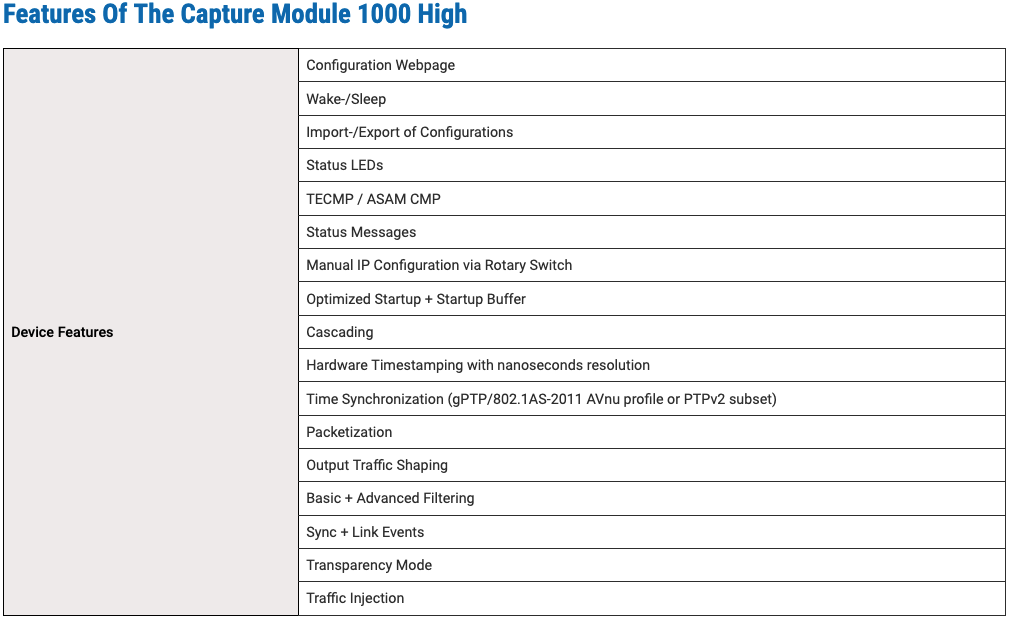

Product characteristics

Device Features	Configuration Webpage
	Wake-/Sleep
	Import-/Export of Configurations
	Status LEDs
	TECMP / ASAM CMP
	Status Messages
	Manual IP Configuration via Rotary Switch
	Optimized Startup + Startup Buffer
	Cascading
	Hardware Timestamping with nanoseconds of resolution
	Time Synchronization (gPTP/802.1AS-2011 AVnu profile or PTPv2 subset)
	Packetization
	Output Traffic Shaping
	Basic + Advanced Filtering
	Sync + Link Events
	Transparency Mode
	Traffic Injection
