Introducing Our Solution:

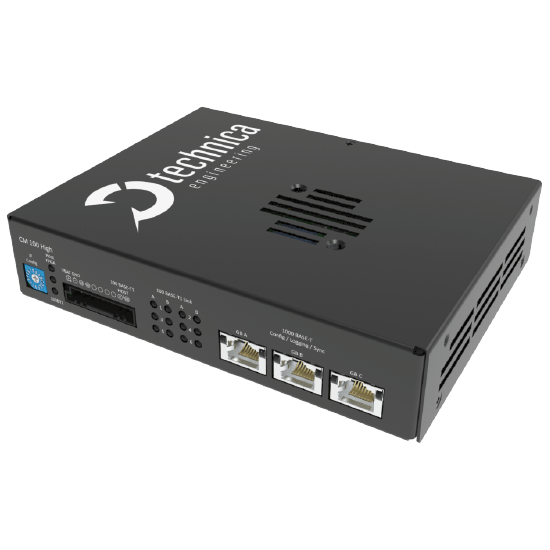

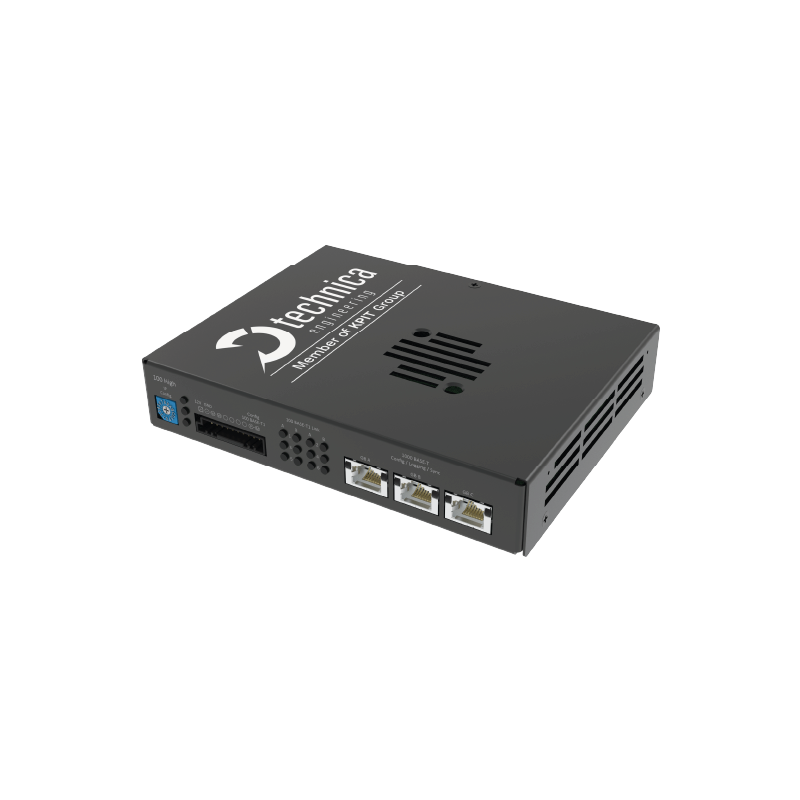

Capture Module 100 High

The Capture Module (CM) 100 High from Technica Engineering is an active tap device designed to capture 100Base-T1 traffic of up to 6point-to-point 100BASE-T1 connections (12 ports in total). The received data is captured and HW time stamped without causing interference on thein-vehicle-network (IVN) and sent out to the data sink (e.g. data logger or PC).

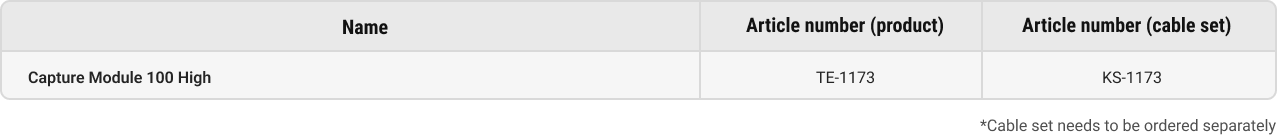

Detailed Product Information

Configuration

The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.

Application areas

Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. To cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.

Product video

Technical details

Operating temperature

-40°C to 80°C

Supply voltage

6.5 V to 24 V DC (typ. 12V DC)

Power consumption

5 to 8 Watt

IP protection class

IP 20

Housing dimensions

167 mm (W), 143 mm (L), 32 mm (H)

Weight

0.7 kg (approx.)

Interfaces

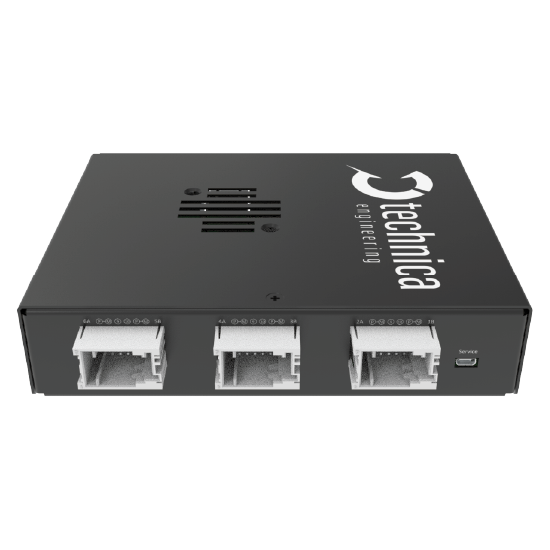

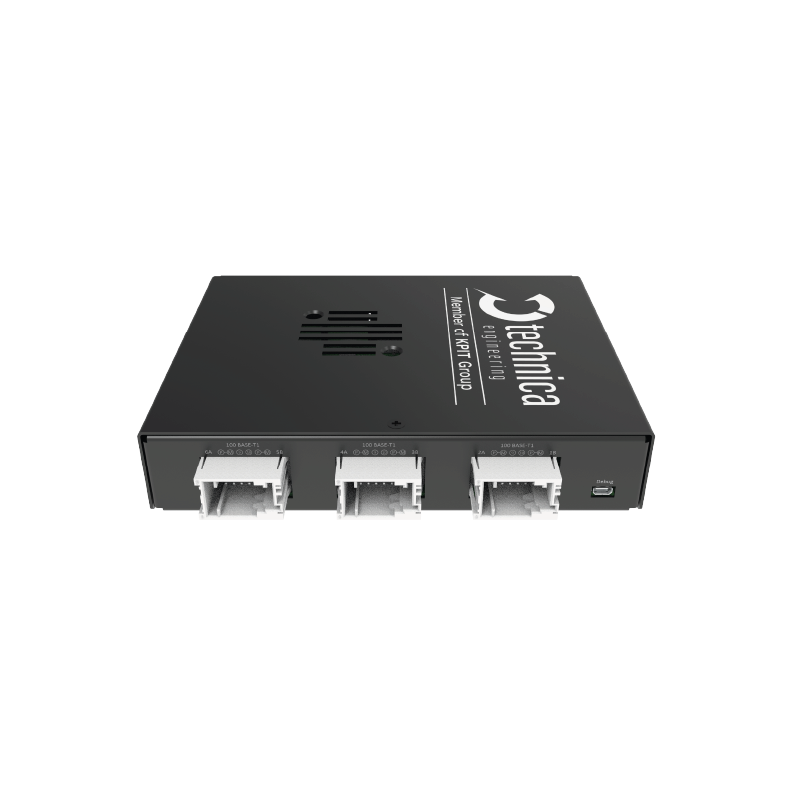

12x 100BASE-T1 (MQS), 3x 1000BASE-T (RJ-45) for Config, Logging, Sync, 1x100BASET1 (MQS) for Config, 2x Wake in/out (MQS), Phy (vehicle-side)

Phy (vehicle-side)

BCM89811

Product characteristics

Device Features	Configuration Webpage
	Wake-/Sleep
	Import-/Export of Configurations
	Status LEDs
	TECMP / ASAM CMP
	Status Messages
	Manual IP Configuration via Rotary Switch
	Optimized Startup + Startup Buffer
	Cascading
	Hardware Timestamping with nanoseconds of resolution
	Time Synchronization (gPTP/802.1AS-2011 AVnu profile or PTPv2 subset)
	Packetization
	Output Traffic Shaping
	Basic + Advanced Filtering
	Sync + Link Events
	Transparent Mode
	Traffic Injection
