Der Network Interfacer 10BASE-T1S von Technica Engineering ist eine Lösung, die auf dem 10BASE-T1S-Ethernet-Standard basiert und eine effiziente Multi-Drop-Kommunikation über ein einziges Kabelpaar ermöglicht. Diese Technologie vereinfacht die Vernetzung im Automobilbereich, indem sie den Verkabelungsaufwand reduziert und gleichzeitig eine zuverlässige Datenübertragung gewährleistet. Der Interfacer schließt die Lücke zwischen herkömmlichen Punkt-zu-Punkt- und Bustopologien und ermöglicht die Integration in verschiedene Netzwerkinfrastrukturen.
Jetz bestellen

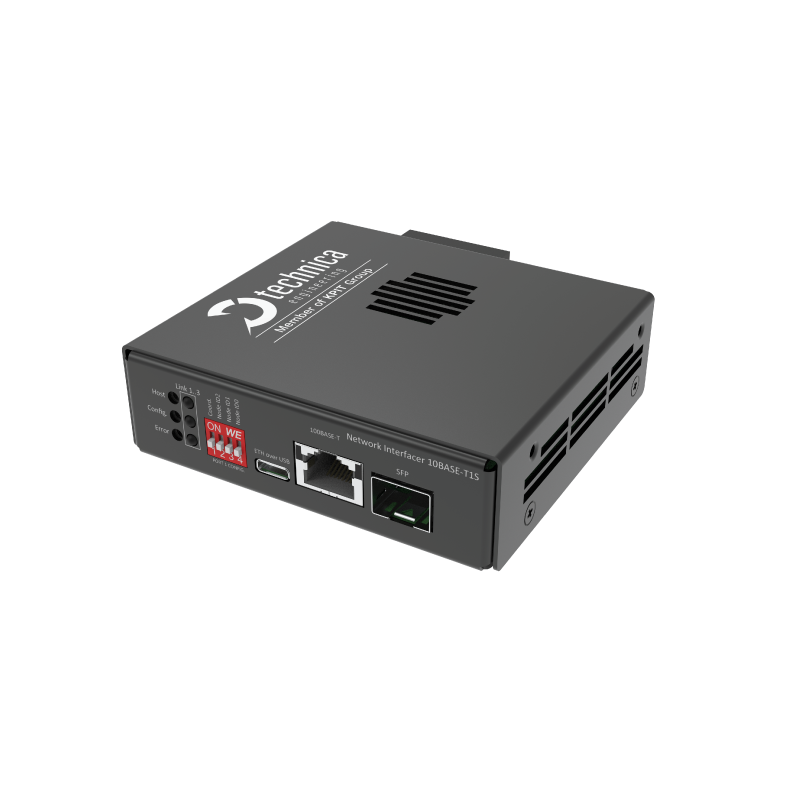

The 10BASE-T1S Network Interfacer is a versatile and user-friendly solution, designed to support both basic and advanced network configurations. Right out of the box, it operates with a plug-and-play approach, integrating smoothly into existing systems without requiring extensive setup. For simple applications where a single 10BASE-T1S port is sufficient, DIP switches provide a straightforward way to configure essential PLCA settings.
For more complex setups, users can access a comprehensive set of features through the device’s web-based GUI. This interface allows configuration of advanced parameters, such as Node ID roles (coordinator or follower), node count, transmit opportunity, burst mode, and bus termination for optimized network performance. Additionally, traffic monitoring, port mirroring, and Multi-node Injector and Switch modes further enhance its capabilities for analysis and troubleshooting in complex networks.
The Network Interfacer is available in two flexible licensing options. The Core License is included with the device purchase, providing everything needed to get started. For added features like Multi-node Injector and Switch functionalities, the device can be upgraded to the Advanced License, available separately. With both basic and advanced configuration options, the 10BASE-T1S Network Interfacer adapts to a wide range of applications, providing flexibility and control in every scenario.
