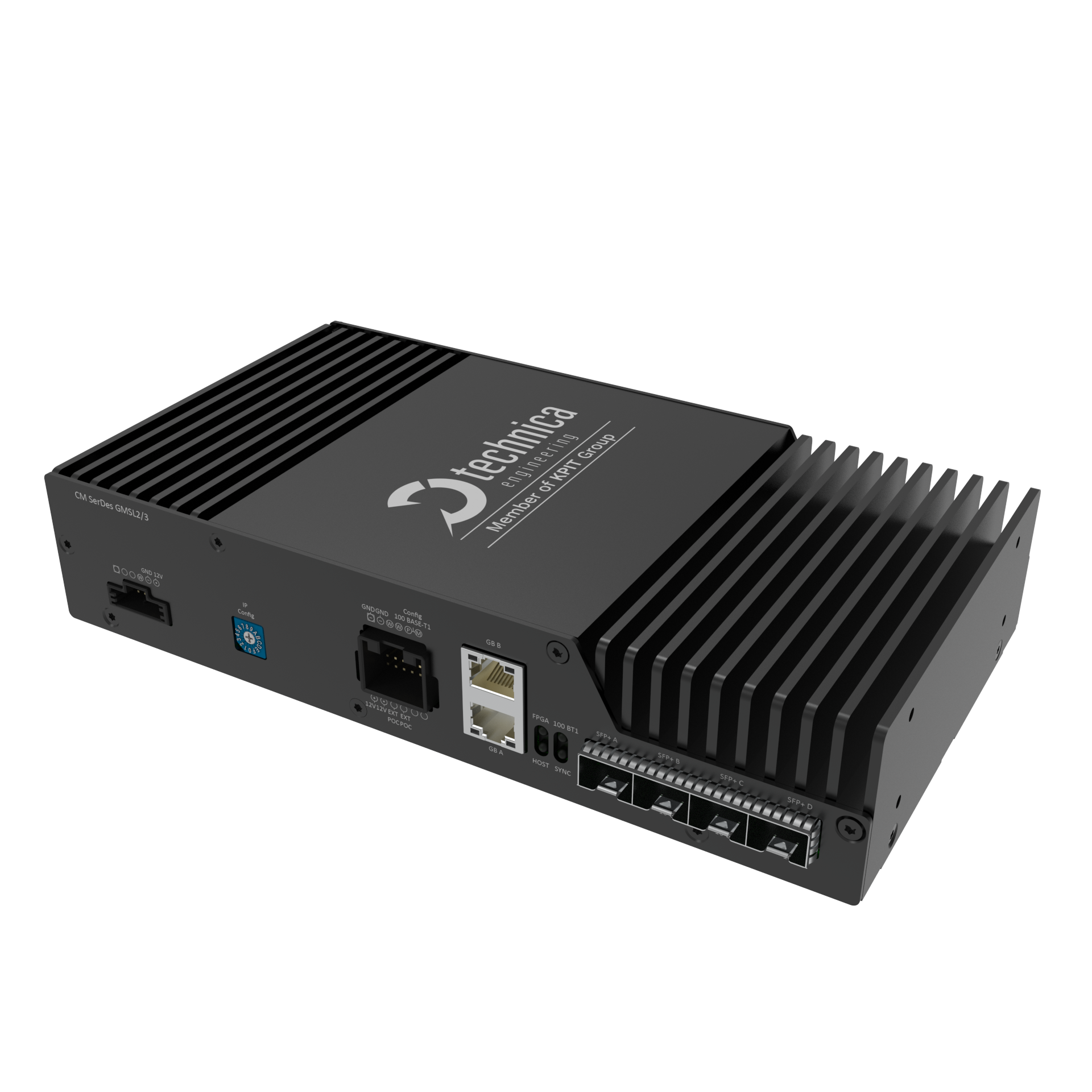

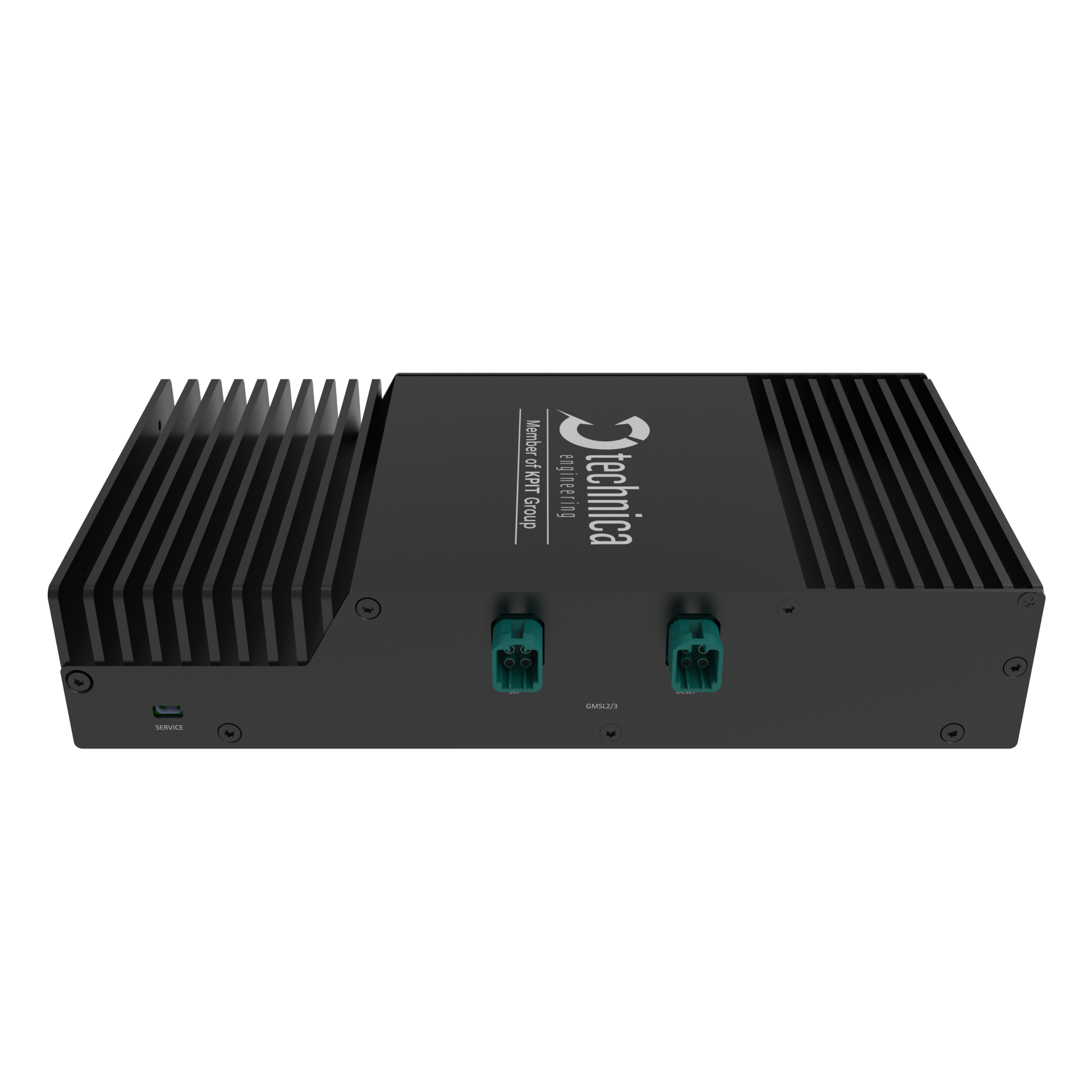

Introducing the Capture Module SerDesPlatform

Designed for modern ADAS and autonomous driving development, it combines high-speed sensor data acquisition, frame grabber functionality and replay/injection capabilities in a single device.

Unlike conventional solutions that require dedicated hardware for individual validation activities, Capture Module SerDes supports multiple workflows on a common hardware platform, reducing validation complexity, hardware costs and engineering effort.

‍

The platform currently supports:

• GMSL2/3 – In production

• FPD - Link III/IV – EAP*

• ASA - ML– EAP*

• A - PHY - EAP

‍

allowing engineering teams to maintain the same workflow across different automotive camera ecosystems.

*AnEarly Access Product (EAP) is a nearly finished product available to selected users before its official release. The product may remain in this status, because it includes a pre-market component (PHY/Switches) that is not fully certified, which restricts the entire product from achieving CE certification or equivalent regulatory approval. This means, EAP is still a prototype, but in a very advanced state. Small adaptations are still possible, but no critical changes are expected and general development is closed. The software includes almost all planned features. Documentation as e.g. User Manual is available and completed.
